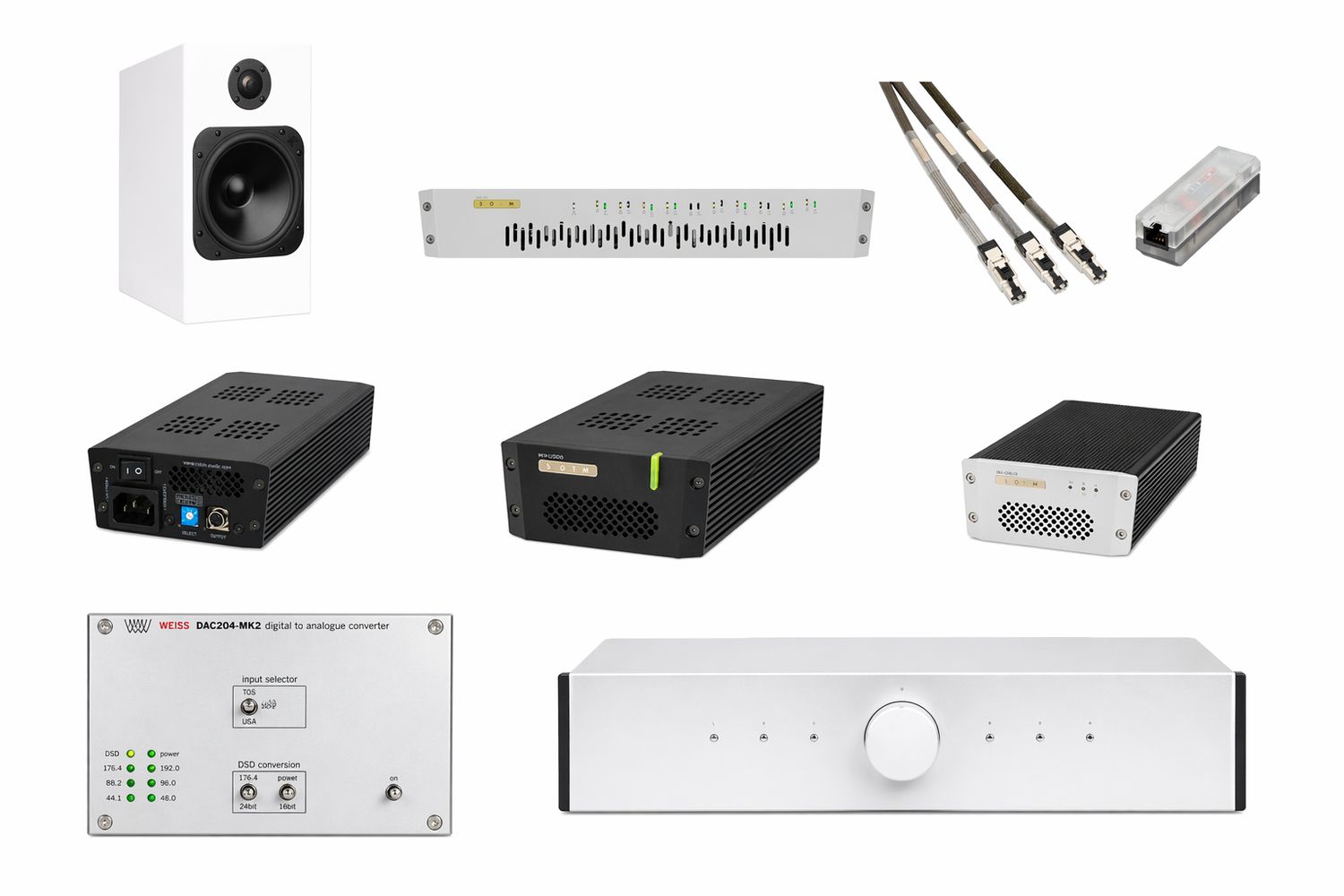

Bundle #6: "Digital Dream Bundle"

Mola Mola Kula Integrated Amp

THE INTEGRATED THAT TRULY BELIES ITS SIZE!

Imagine a sleek, compact design that oozes class.

Imagine an amplifier design that packs enough power to comfortably handle even the most demanding of loudspeakers.

Imagine a complex yet agile and easy to use fully transparent line stage.

Imagine every possible Phono EQ setting available from the comfort of your listening chair.

Imagine a highly acclaimed discrete DAC boasting the best specs and sound around.

Imagine, combining all of the above!

Reality. Is. Kula

Kula is an a la carte modular design creating a fusion of highly technical previous accomplishments. The chassis itself is borrowed from the acclaimed Makua preamp, as is the line stage section and its optional phono stage with independent adjustable settings and up to 6 separate inputs. The optional DAC section which also is available in the Makua, is identical to the world-class Tambaqui stand-alone unit and features 5 digital inputs including Roon endpoint and Bluetooth. Additionally, the Kula incorporates a Mola Mola exclusive amplifier which boast an output of 150 Watts @8 Ohm, doubling into 300 Watts @4 Ohm. Clearly enough power to drive any speaker with ease.

I/O

3 balanced and 3 unbalanced inputs, selectable by switch and software
2 Pairs of Furutech binding posts. Directly connected to the amplifier PCB using Kubala-Sosna cable.

All inputs routable through optional processor boards like the phono stage
Processing balance and input gain offset
Phase invert and mono sum
Full software control of routing and processing
Mastering mode

PERFORMANCE

Maximum input level: 20dBu (7.75Vrms)
Input impedance: 100kohm
Unweighted Signal/Noise Ratio: 113dB
Output power: 2x 150W/8 Ohm, 2x 300W/4 Ohm
Distortion (THD) @1kHz: 100W/8R & 200W/4R <0.0004%
Output Impedance: 2m: (20-20kHz) (measured directly on binding posts)
Bandwidth 50kHz @ -3dB
Gain resolution: <1dB, better than 0.2dB over normal listening range

CONTROL

6 programmable presets
(premium) Remote control
Mola Mola Remote app
Roon Ready (if DAC option fitted)

ADD-ON

Mola Mola Phono stage
Mola Mola DAC

DIMENSIONS AND WEIGHT

420mm (W) x 110mm (H) x 370mm (D). Depth includes volume knob and connectors. 11kg

ROON READY
The music player for music lovers

The Mola Mola Kula is Roon Ready certified!

Weiss DAC204-MK2 Digital To Analog Converter

THE NEXT GENERATION OF WEISS' MOST AFFORDABLE AND VERSATILE DIGITAL-TO-ANALOG CONVERTERS IS HERE.

• Features new upgraded DAC chip, the ES9028PRO
• Pristine, low-jitter conversion to analog audio
• Optimized output stage
• Excellent for professional mixing / mastering studio or audiophile-grade listening

COVER ALL YOUR BASES

The DAC204-MK2 is a multi-format digital-to-analogue and digital-to-digital converter. Its many input and output options make it equally useful for use in a professional mixing or mastering studio as for an audiophile-grade listening room.

It now employs a redesigned DAC section: a new ES9028PRO chip featuring an advanced jitter-elimination circuit, plus an optimized output stage. The distortion figures and reconstruction filters have been fine-tuned by ear for an optimal sonic experience.

DIGITAL ACCEPTED HERE

The DAC204-MK2 accepts incoming digital audio streams straight from any USB-equipped computer, tablet, or mobile phone. It can also receive S/PDIF and AES/EBU audio via its S/PDIF or Toslink connectors.

OUTGOING AUDIO

The DAC204-MK2 converts the incoming digital streams to analogue audio, which simultaneously appears on its balanced XLR connectors and unbalanced RCA connectors.

It can also perform digital-to-digital conversion and output digital audio in AES/EBU or S/PDIF formats through the corresponding connectors and a BNC output connector.

Should the incoming audio be in DSD format, the DAC204-MK2 can convert that to PCM.

STAY CONNECTED

The DAC204-MK2 can be permanently connected to multiple digital units, and the user can easily switch between them with the front-mounted Input Selector switch.

PRODUCT COMPARISON

The DAC204-MK2 is the bigger sibling to the DAC205-MK2. The two units offer the same conversion quality, but the DAC204-MK2 has a USB input and can convert DSD to PCM audio.

Both the DAC204-MK2 and DAC205-MK2 remain affordable alternatives to higher-grade units such as the DAC501 and HELIOS. They do not have the onboard digital processing capabilities of those units, nor do they include headphone outputs or remote controls.

SPECIFICATIONS

• Digital Inputs
  • USB
  • (x2) AES/EBU or S/PDIF on Toslink or RCA connectors
• Accepted Formats: PCM 44.1kHz up to 384 kHz, DSD 64x/128x
• Analog Outputs
  • Line out UnBAL RCA
  • Line out BAL XLR
• Front Panel
  • Active Input Selector switch (USB, Toslink, or RCA)
  • (x2) switches for DSD to PCM conversion settings
  • Power on/off switch
• Back Panel
  • Digital USB, RCA, and Toslink inputs
  • Digital AES/EBU on stereo XLR, RCA, and BNC outputs
  • Analog XLR and RCA outputs
  • (x2) Toggle switches for output level setting
  • External power supply connector
• Dimensions: 6.5" x 4.2" x 3.8"

SOtM sMS-200 Neo SE Mini Network Player

The sMS-200 is a new generation of mini network player with built in ‘Media Player Board’ developed with our own technology.

The significance of the sMS-200 comes from the dedicated ARM processor board developed specifically for audio. It is not like the many ready-made processor boards in the market offered with dazzling low price but not very high sound quality, due to which many audio product manufacturers experience deterioration of sound and are forced to use unnecessary features from their boards. Not so with the sMS-200.

SOtM developed this with audio sound performance at the forefront, getting rid of all unnecessary features and concentrating on a high quality sound tone for a reasonable price.
The sMS-200 is carefully designed to provide the best sound quality based on our own unique technologies built up since the days of media players, and it is probably the only one capable of exceeding the current network players on the market in terms of functionality.

As to the player software, Roon Ready, MPD, DLNA, SqueezeLite and others are available as well as music files from an external USB storage device, network shared folders and streaming. And more functions can be easily added via software upgrade.

The sMS-200 is the one and only network player in this price range that delivers high fidelity together with impressive sound. It makes people freely imagine the real scene where the original sound was generated.

Experience the difference and surprise with the sMS-200 developed by SOtM.

The sMS-200 Neo is the updated model to our previously very successful sMS-200. While the original model sounded very neutral and balanced, the changes brought about by the updated sMS-200 Neo will mostly be perceived as a more relaxed presentation. Although the standard sMS-200 is already an overachiever, the sMS-200 Neo retains this while still adding an extra dose of musicality to the party.

This version also includes these upgrades:silver DC wires, eABS shielding, EVOX caps, and clock input

(2) SOtM tX-USBultra USB Audio Device

You may have heard someone say or said yourself something like “it sounds analog” or “it sounds musical” when listening to a very good sound.

Such expressions have been used to describe sound that is close to the real charm in an actual performance stage or that is instead expressed in musical nuances. However, whether it is the former or the latter expressions, the meaning of these expressions could only make sense when the feelings of a very dedicated and dynamic live performance reach our ears and touch our minds.

However, with most audio systems it is very difficult to experience such charm or musical nuances, and in fact even it is even hard to reach such sound with ultra high-end audio systems.

So SOtM, to overcome such situations, has been developing from the SATA filters, the tX-USB card series and other equipment since people first started getting into computer audio. These have settled in to being essential parts of digital audio nowadays, but still it is a fact that there is a lot to overcome to improve sound quality.

Facing up to this fact, the tX-USBUltra is designed to reach to the goal of improved sound quality. It works as a hub receiving and distributing USB audio signals, but regenerating the USB AUDIO signal by the high-performance super clock module, sCLK-EX, installed inside to the product, so that sound could be superior to any other USB audio product.

The mid-low range sounds very deep, detailed and earnest, the high range sounds extremely delicate and open, and the very low range gives you transparency you have never heard before and gives you a very natural and solid texture of performance.

The sound improvements with tX-USBUltra can be heard out even in an ultra high-end audio system, it can simply be judged as the best USB audio device up to date.

Whatever is, it is very difficult to go beyond any limit in any field. At the heart of this product is the built-in super clock, sCLK-EX, which has been developed over the years, allowing you to experience a whole new range of sound and introduce you to go beyond the sound.

The tX-USBultra would show how to upgrade the sound quality and improve the dignity of music by in-depth research into advanced audio technology.

Key Features

• USB audio signal regenerated by sCLK-EX
  • Custom designed ultra low phase noise oscillation circuit
  • Isolated differential clock signal circuit
  • Wide operating voltage input range
  • Ultra low noise regulator circuit
  • Optional 10MHz master clock input
• 2 ports USB hub
• USB port power ON/OFF switch


SOtM sCLK-OCX10 Master Clock with upgrades

The sCLK-OCX10 is a master clock generator that produces a high purity 10 MHz clock signal.

In digital audio devices, the clock signal acts as the heart of the product, a higher purity clock brings more accurate and better sound quality. However, the higher purity clocks also requires higher costs, therefore, a high-purity 10MHz clock, like a master clock, is not installed inside of the audio device but connected to the internal clock and synchronized by a master clock as the way to improve sound quality.

The sCLK-OCX10 is a specially designed product for high end audio equipment which brings all the benefits of master clocks that have been used primarily in recording studios and high performance audio. It could be the paramount digital device for audiophiles who want the best sound quality. It can be used with devices equipped with a BNC connector for their master clock input. For SOtM products, 10MHz master clock input connectors can be optionally added to products with the sCLK-EX installed such as the sMS-1000SQ, the sMS-200ultra, and the tX-USBultra can be used with the sCLK-OCX10.

As many audiophiles know, the clock signal is an angled square digital signal, but the sCLK-OCX10 produces a pure analog sine wave of 10 MHz, and this sinusoidal clock signal is the method adopted for the best clock performance because it produces significantly less noise than the angled square digital clock signal. In order to implement this, the sCLK-OCX10 consists of only analog circuitry which contains 10 years of know-how of SOtM, it derives high analog sound that is different from other master clocks on the market which output angled square digital clock signals.

Throughout all bandwidth, the sCLK-OCX10 produces a very delicate, smooth and natural sound without losing the inherent energy that every instrument has, especially in the mid-low bandwidths. It brings very clear and significant improvement which normally can be expected by the best analog devices, so with the sCLK-OCX10, you can experience not only music played by a system, but the essence and the artistry of the music’s heart. And such experience means absolute improvement that can be only achieved through SOtM’s technology rather than tweaking sound.

The sCLK-OCX10 has four outputs, and it can be used simultaneously with 4 BNC connectors for master clock input devices. Optionally, the output impedance can be set and selectable to 50 ohms or 75 ohms.

• 10.000MHz sine wave clock output
• All Isolated clock output
• 50Ω(optional75Ω) BNC connector x 4
• Extremely ultra low phase noise
• Ultra low regulator circuit
• Temperature stability : ±2E-9

Specifications

User interface
Operating indicator LED x1
Output clock signal
Frequency : 10.000MHz sine wave
Output level : 13dBm(2.825Vp-p@50Ω), ±2dBm
All isolated clock output
Output connector
50Ω BNC connector x 4
Optional 75Ω BNC connector available
Typical Phase noise(dB/Hz) of internal OSC
10Hz : -140 >
100Hz : -160 >
1KHz : -165 >
10KHz : -165 >
100KHz : -165 >
Temperature stability(0 to +50℃, Ref : 25℃,)
±2E-9
DC power input
Input voltage : 12Vdc
Voltage tolerance: -0.05Vdc, +0.5Vdc,
Input current : 2A max
5.5mm OD, 2.1mm ID adaptor jack
Operating environment
Operating temperature : +10 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
Dimension
106 x 48 x 245(mm)
Weight
1.5kg >

SOtM SPS-500 Power Supply with Y cable

The resolution, textures, transparency and expression of sound is greatly affected by how and what power is supplied to your audio devices. Which means a power supply unit affects the sound quality to the entire audio system, and should never be considered “just a power supply unit.”

The sPS-500 is an audio power supply designed specifically for high performance audio. It is built to eliminate noise generated by powered devices as well as to remove noise coming from an AC power source.

Using SOtM’s unique technologies for noise cancellation and sound enhancement, and high quality audio components that are already proven in sound quality, you will hear superior sound with the well-designed sPS-500.

The sPS-500 can easily cope with a wide range of AC power input – the output voltage can change to 7Vdc, 9Vdc, 12Vdc or 19Vdc depending on the power specification of your audio equipment – and the 50W output is flexible enough to be applied to various audio systems. It is also designed to provide more stable power through the input, output, overcurrent and overheat protection circuits.

The rich texture and detailed, luxurious sound created with the technology of the new sPS-500 will create a new listening experience with your audio system. A unique and impressive exterior design also makes the sPS-500 stand out from the crowd.

The sPS-500 will help bring your audio system up to the next level.Key Features

• 7Vdc, 9Vdc, 12Vdc, 19Vdc selectable output voltage
• Eliminate noise generated by powered devices
• 50W output power for NAS, fanless audio PCs and others
• Support worldwide AC input voltage
• Output short, over temperature protection

Key Features

• 7Vdc, 9Vdc, 12Vdc, 19Vdc selectable output voltage
• Eliminate noise generated by powered devices
• 50W output power for NAS, fanless audio PCs and others
• Support worldwide AC input voltage
• Output short, over temperature protection

Specifications

User interface
DC output on/off switch
Operating indicator LED x1
AC power input on/off switch(Rear panel)
AC power input
Voltage : 100Vac ~240Vac
Frequency : 50Hz / 60Hz
Current : 2.5A >
DC power output
Voltage : 7Vdc, 9Vdc, 12Vdc, 19Vdc selectable
Voltage tolerance: ±10%
Current limit:
5A@ 7Vdc, 9Vdc, 12Vdc
3.3A@ 19Vdc
Current tolerance: ±10%
Maximum output power :
50W@100Vac <, +50℃ > inside temperature
Protection
Output short
Over temperature
Operating environment
Operating temperature : +10 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
Dimension
106 x 48 x 230(mm)
Weight
2kg >

SOtM iSO-CAT6 LAN single noise filter

USB connection. It is designed by USB audio class 2.0 asynchronous interface.

The state of the art iSO-CAT6 provides a high level of sound range and quality, with a noticeable difference for premium class hi-end audio systems – reducing the often-overlooked noise interference created by a LAN port.

The iSO-CAT6 is a must-have item for any audio system using a LAN port. Using iSO-CAT6 together with dCBL-CAT6, a LAN cable by SOtM, a better sound improvement effect can be obtained.

With SOtM iSO-CAT6, feel and enjoy the genuine music sound going beyond the limit of PC audio or network audio systems.

The iSO-CAT6 Special Edition is configured with 3 network cables (black,gray, white), offering respectively different, high quality sound characteristics. This allows you to organize your own unique, customized tones for your audio system.

Isolator specification

• CAT6 support
• Fully shielded modular jack
• High quality isolation transformer
• Isolation 1500Vrms, 0.5mA, 60sec

Others

• High-end audio grade sound tuning
• No need of external power supply

SOtM sNH-10G Network Switch

There are few experiences as rich and beautiful time as listening to music with a good quality audio system. If the sound of the system is good enough, it will be a most pleasant time to enjoy.

In order to enjoy the moment, many audiophiles are investing a lot of time and money into their own systems. And they understand that it can be a long journey that is only possible with a passion for audio.

However, we wonder how many audiophiles are truly satisfied with the sound in their system. Especially with a network audio system, you will know from your own experience that it is not very easy to overcome and resolve all the variation from network circumstances. It also occurs with an ultra high-end system, mainly due to the lack of technological development so far. The physical network transmission technology in particular is the key point to be considered in this subject.

Not all of the physical network connections use the special techniques developed for audio transmission, even though there are a variety of high-end digital audio devices, and eventually it brings a lack of musical fidelity which should not happen with high-end audio devices.

So the sNH-10G is now available, it is a network switch developed to overcome such low performance in a network environment, and it is finally able to give you a fundamental solution in your network audio system.

The input and output terminals consist of eight LAN ports and two SFP ports. And there is also an option to install the sCLK-EX and the 10 MHz master clock input connector to further maximize sound quality. With these options and high-performance network cables, such as the dCBL-CAT7, your network audio system will be able to perform with more realistic textures, wider sound stage and explosive dynamics without losing the detail of the entire range.

In addition, the beautifully carved design represents the melody of music with a luxurious aluminum body. It demonstrates the difference from conventional network products in all aspects.

No matter what high end audio system you currently have, experience the sNH-10G to prove what the ultimate sound should be in your network system.

Key Feature

• Designed for high end network audio
• Specially designed Ethernet noise filter
• Support 10, 100, 1G ethernet
• 8 x RJ-45 ports
• 2 x SFP ports
• LED indicator on/off function
• sCLK-EX High End clock module
• 10MHz master clock input
• Wide range of power input(6.5V ~ 12V)

Specification

User interface
Power indicator LED x 1
Link indicator Front LED x 10, Rear LED x 8
Active indicator Front dual Color LED x10, Rear LED x 8
Power switch : Power off, Power on with LED, Power on without LED
Network
Supported Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3u 100Base-FX 100Mbps over fiber optic
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X 1 Gbps over fiber optic
IEEE 802.3x flow control and backpressure
Full-duplex and half-duplex operation
Supports 9216 byte jumbo packet length
Connector
RJ-45 ports x 8
SFP ports x 2
Optional audio grade clock
sCLK-EX with 10MHz Master clock input
DC power input
Input voltage : 9Vdc(Optional 12Vdc or Optional 6.5Vdc ~ 8.5Vdc when installing sCLK-EX)
Voltage tolerance: ±10%
Input current : 2A max
5.5mm OD, 2.1mm ID adaptor jack
Operating environment
Operating temperature : +10 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
Dimension
296 x 211 x 50(mm)
Weight
2 kg >

Totem Element Fire V2 with Solidsteel Stands

This Fire is hotter than ever before.

Efficiency, bass response, and power handling specifications imply Fire V2 is a hulking tower rather than the statuesque monitor it is. Now powered by next generation Torrent woofers, it is meticulously refined to redefine the category.

The proprietary magnetic design of Totem’s own Torrent woofers require absolutely no crossover components and allows an unadulterated flow of musical energy. The effect is felt as much as it is heard, simultaneously stimulating a physical and even emotional interaction as one listens.

Correspondingly radical tweeter design balances the Torrent spectrum with sparkling clarity, natural phase, and striking accuracy on and off axis.

Some speakers can be the centerpiece of the favorite family area, others the focal point of a dedicated listening room, some the core of a serious recording studio. Fire V2 can – and will – do it all.
