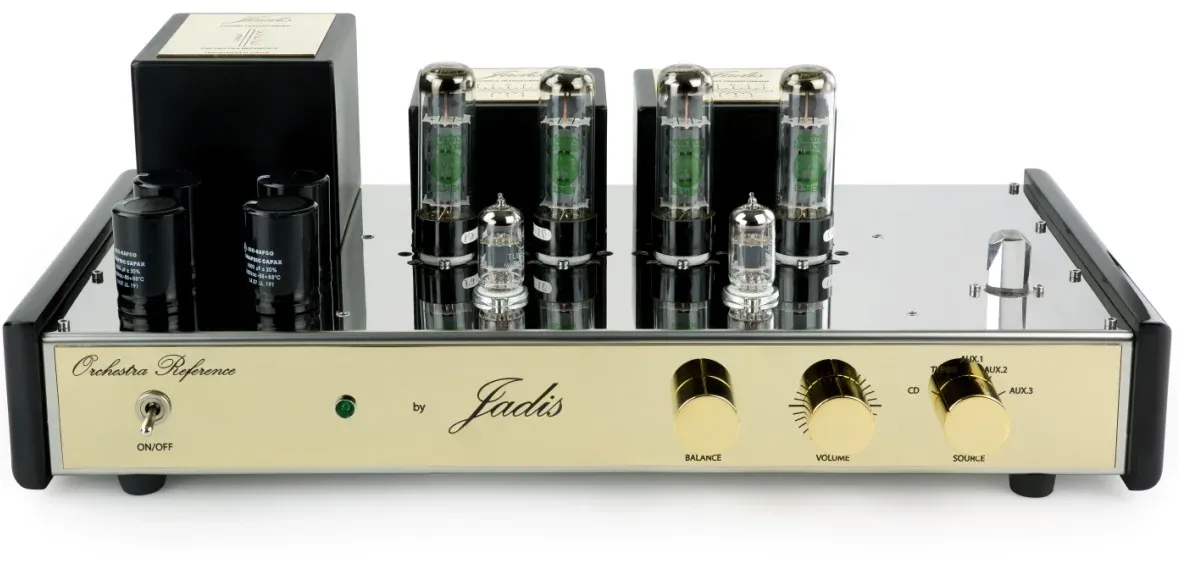

JADIS ORCHESTRA REFERENCE EL34 INTEGRATED AMP

A “Flawless” Musical Performance

The Orchestra Reference delivers the famous Jadis sound at a price within reach of any music lover.

The Orchestra Reference is a hybrid design featuring a pair of solid-state bipolar transistors on the front end of a classic push-pull 40 watt integrated. This design was chosen for it’s higher power and lower distortion. Utilizing much the advanced technology that makes Jadis a leader in high-end tube amplification, such as point-to-point wiring, non-magnetic stainless steel chassis, gold-plated ceramic tube sockets and custom in-house hand-made transformers, the Orchestra Reference exemplifies the luxurious sound Jadis is famous for.

The Orchestra Reference delivers a big open sound with unrivaled dynamics and clarity. The fixed bias output stage delivers efficient power and enhanced tube life. When you combine this classic 40 watt EL34 design with Jadis’ custom, hand-made transformers the result is stunning musicality at incredible value.

• Type: Integrated amplifier with optional remote control
• Bias: fixed – has to be adjusted when tubes are changed
• Power: 40W class-B
• Input type: 5 line input
• Bandwidth: 5Hz to 60kHz @-3dB
• Sensibility: 250mV
• Tubes list: 4 x EL34 2 x ECC83
• Dimensions: 53x27x20 cm
• Weight: 20 kg (44.0925 pounds)
• Consumption: 300W
